FalconXFX-MC-DR-01
DATA ACQUISITIONRequest a Quote
Multi-Channel Digital Receiver
High-speed multi-channel acquisition platform built around Zynq-7000 FPGA and 16-bit ADC technology.
Part Number
FX-MC-DR-01
Lead Time
4–6 Weeks
Device Support
Zynq-7000 SoC
System Overview
Designed for demanding radar, software-defined radio (SDR), and signal intelligence applications, the Multi-Channel Digital Receiver delivers unparalleled versatility.
By tightly coupling high-performance 16-bit analog-to-digital converters directly to a programmable Zynq-7000 FPGA fabric, it minimizes latency and maximizes processing bandwidth.
The architecture is optimized for edge-computing environments where immediate, real-time signal processing and massive parallel data throughput are critical mission requirements.
Key Features
- 8 × 16-bit 100 MSPS ADCs
- Zynq-7000 XC7Z045/XC7Z100
- 10G Ethernet Connectivity
- High-speed LVDS I/O
Technical Specifications
Processing
FPGAZynq-7000
Logic444K cells
DSP2020 slices
Data Conversion
ADC16-bit
Channels8
Sampling100 MSPS
Connectivity
Ethernet10G
SFP Ports1
UART/JTAGYes

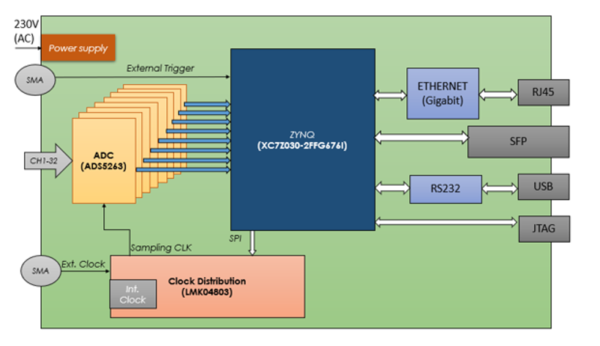

System Architecture
BLK-DIAG-01
Architecture diagram source pending replacement with dedicated system block diagram.
Target Applications
Radar Systems
Signal Intelligence
Physics Research
